GI 275 EIS

GI 275 EIS

Air Plains EIS Quick-Kit

Low stock: 1 left

$7,435.00 USD
$7,435.00 USD
Sale Sold out
Shipping calculated at checkout.
Aircraft Models
Ignition System

STC Model Eligibility

STC
See STC AML

View full details

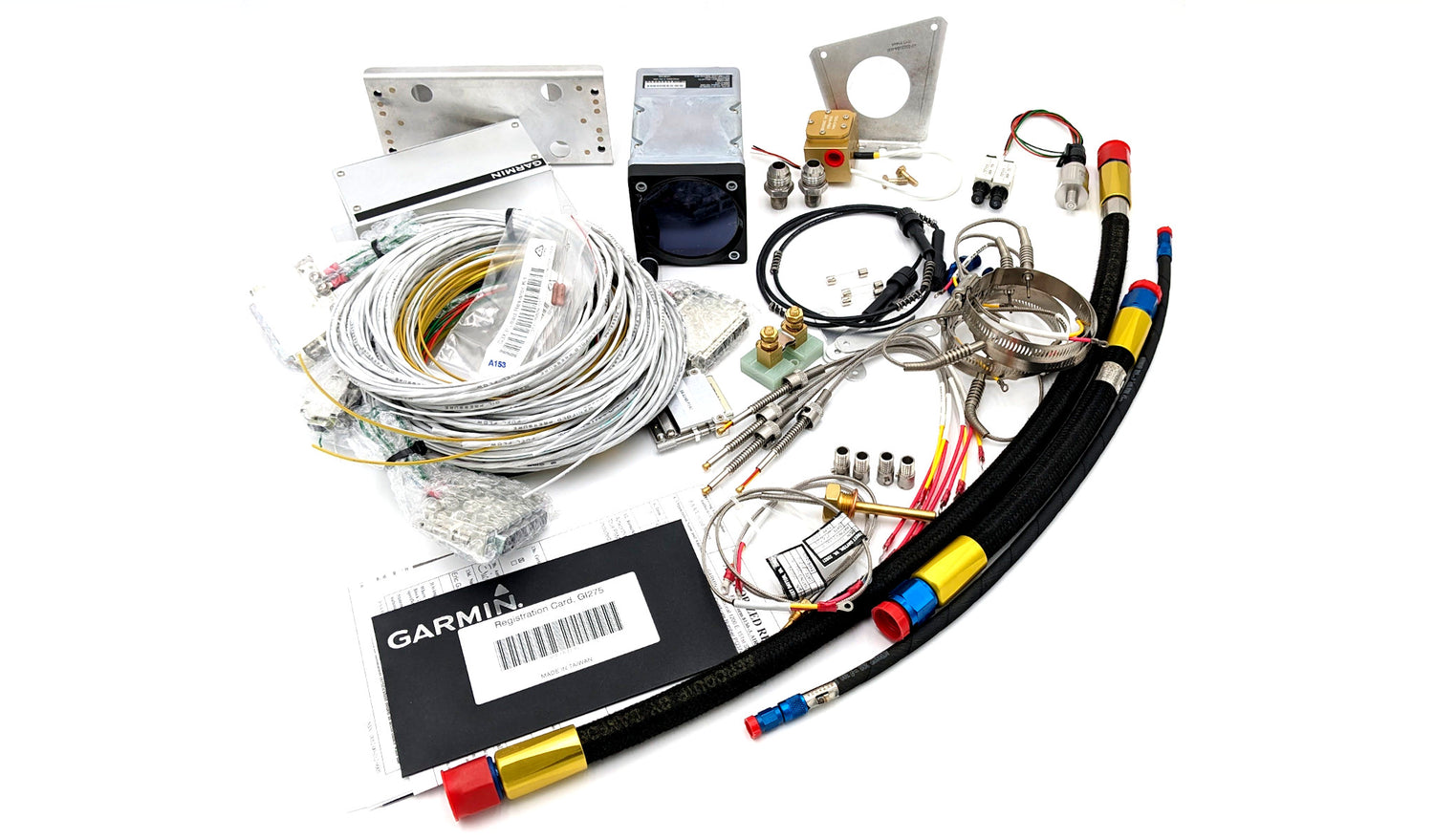

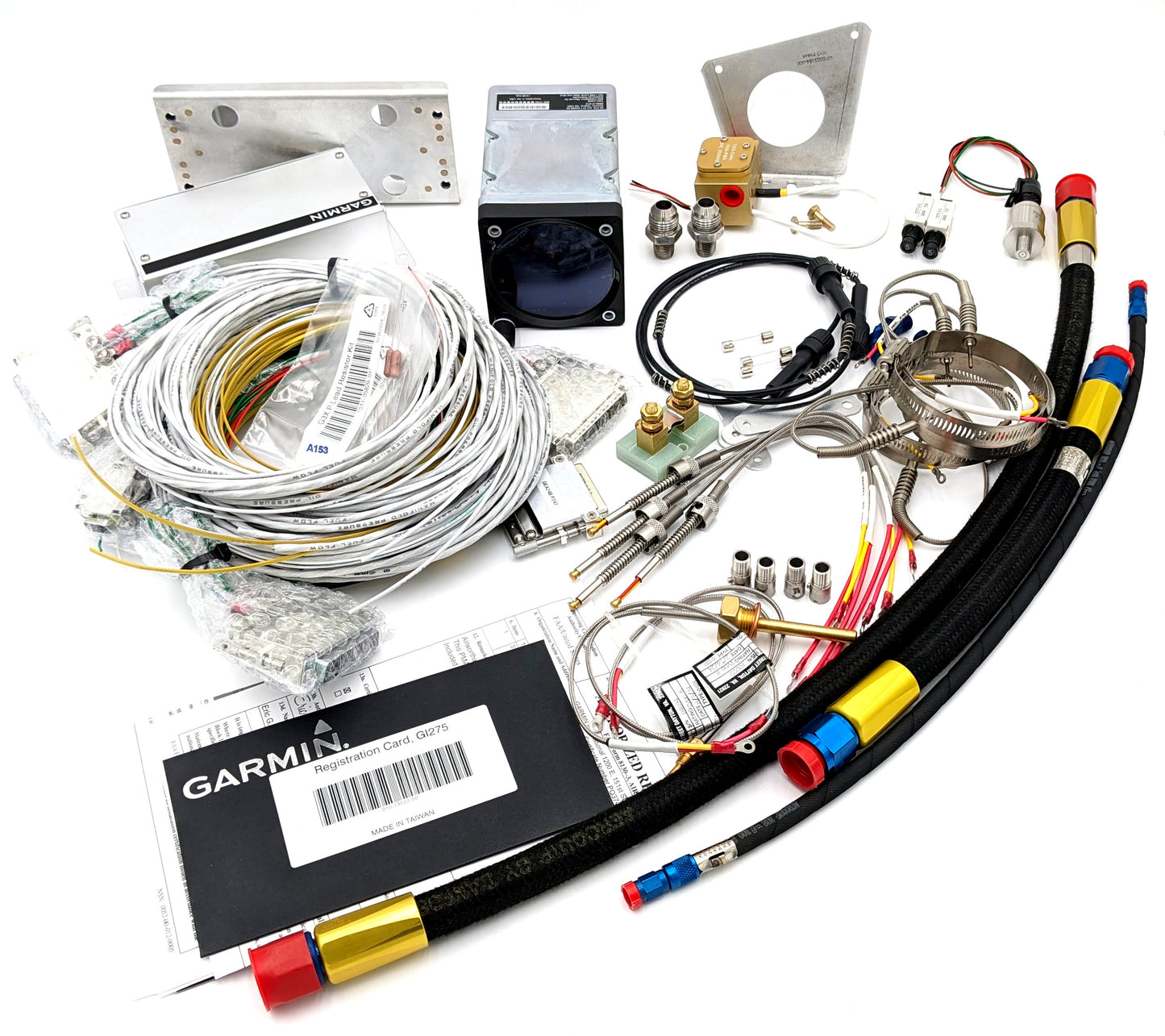

Included Hardware

  • 1X - Complete Harness (CHTs, EGTs, Oil Press, Oil Temp, RPM, Manifold Pressure, Shunt for Amps and Voltage Wires)
  • 2X - Circuit Breakers 5 Amps
  • 1X- SD Setup Card for Air Plains Upgrades
  • 1X - Carb Temp Probe (Carb. Only)
  • 1X - Fuel Pressure (Fuel Injection Only)
  • 1X- Convoluted Tubbing for Harness
  • 6X -Thermocouple Wire Stand-Off
  • 1X - Mounting Hardware (Fuel Flow and GEA 24)
  • 1X - Fuel Flow AN Fittings
  • 1X - Shunt
  • 3X - Fuses and Housing

We have developed a quick-kit for all our costumers that would like to take advantage of an electronic engine monitor to keep track of CHT's, Oil Temperature, Oil Pressure and fuel flow. This kit is designed to provide all the hardware necessary to make a successful installation with the least amount of downtime.

Also, for some select aircraft, we will offer the capability of replacing the old co-pilot panel engine cluster with a new metal panel that is powdercoated and engraved. We will provide a pre-cut acrylic overlay that can be trimmed precisely to your panel and dash shape. Once we receive the panel back we will scan the changes and provide a metal panel back to you.

Complete Kit

We have added several parts to the kit so you don't have to worry too much on the details. Our goal was to reduce your guesses and minimize the amount of trips to the aicraft parts store.

Complete Harness

We have built all the harnesses needed for an easy installation. Your A&P will be doing cartwheels when they see this beautiful harness. We also provide the drawing with the electrical schematics.

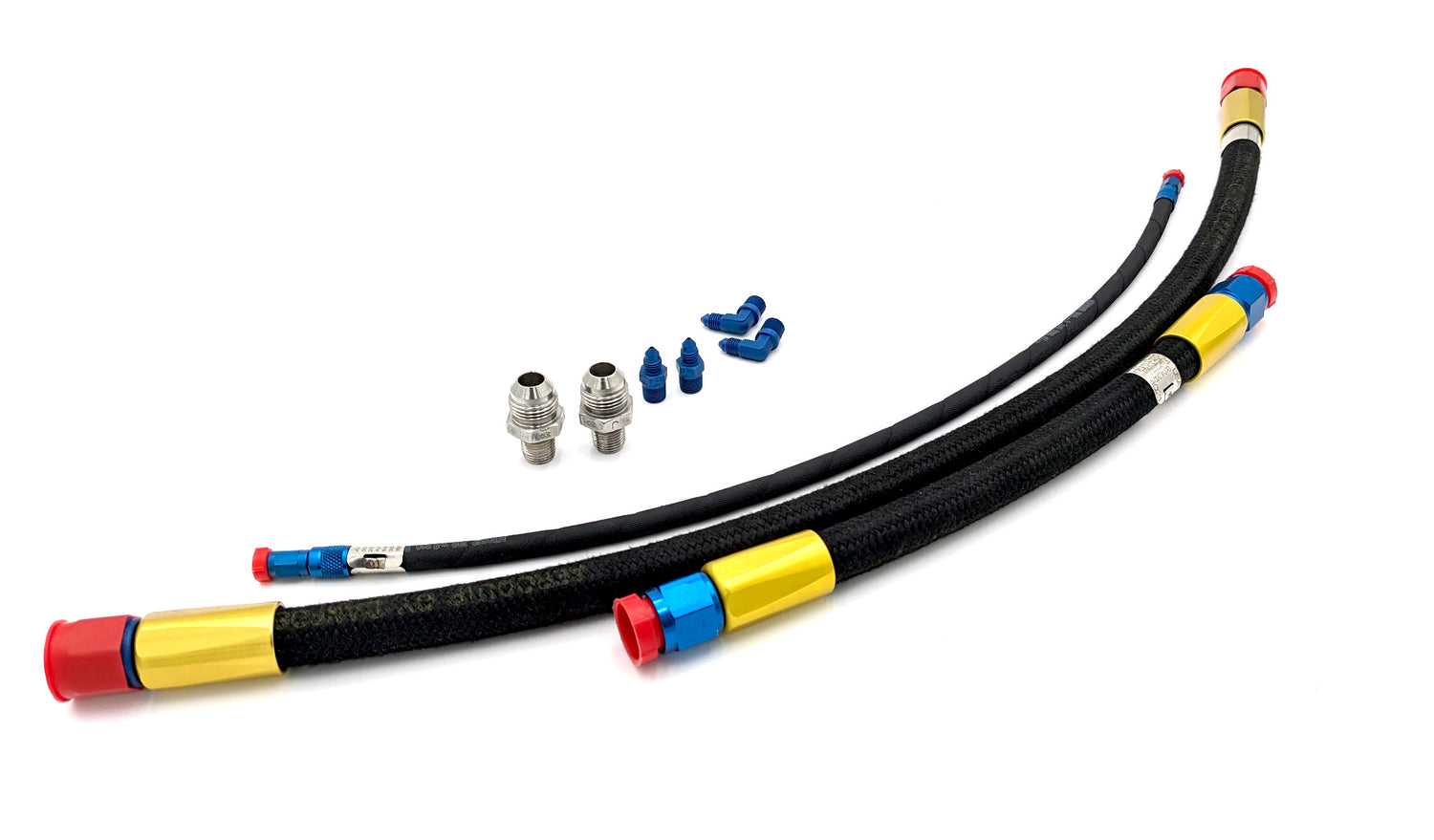

Complete Hose Kit

We provide the correct hose size and length for the manifold pressure, fuel flow transducer, and oil pressure. There is a slight variation dependent on fuel strainer location, but we took care of it too.

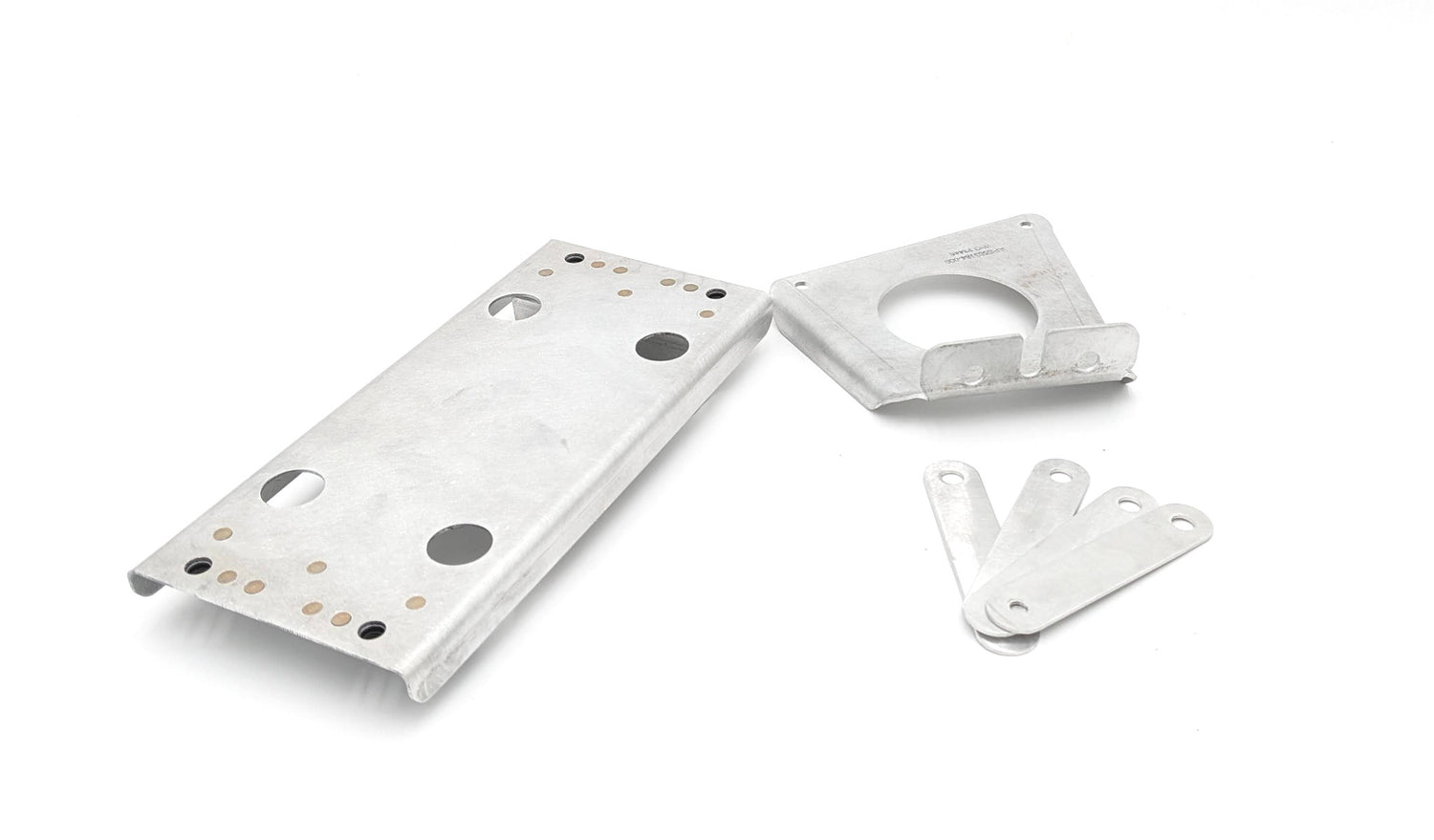

Mounting Brackets

We fabricated a mounting bracket for the firewall to mount the GEA 24 so your glove box can take a break. Also, you will find a mounting bracket for the Fuel Flow Transducer and EGT and CHT wire standoff support.

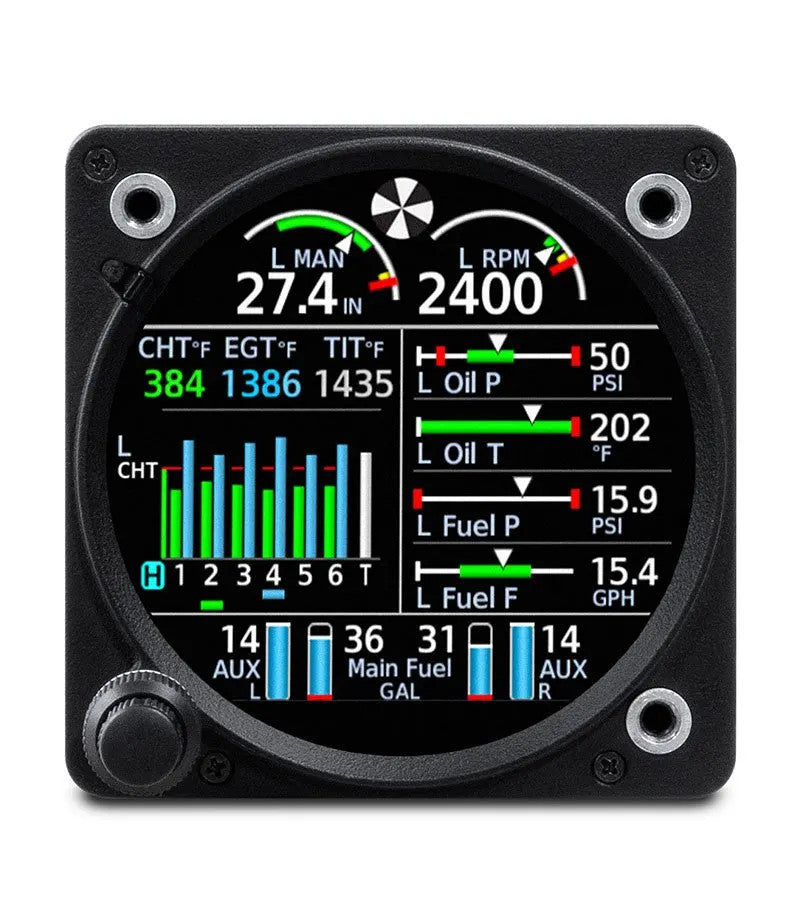

Fly with Precision

If you need a better tool to aid on your flight planning the GI 275 EIS provides the capability of displaying fuel flow, fuel quantity and range. The lean assist mode with help you balance efficiency with performance whether you like to fly LOP (Lean of Peak) or ROP (Rich of Peak).

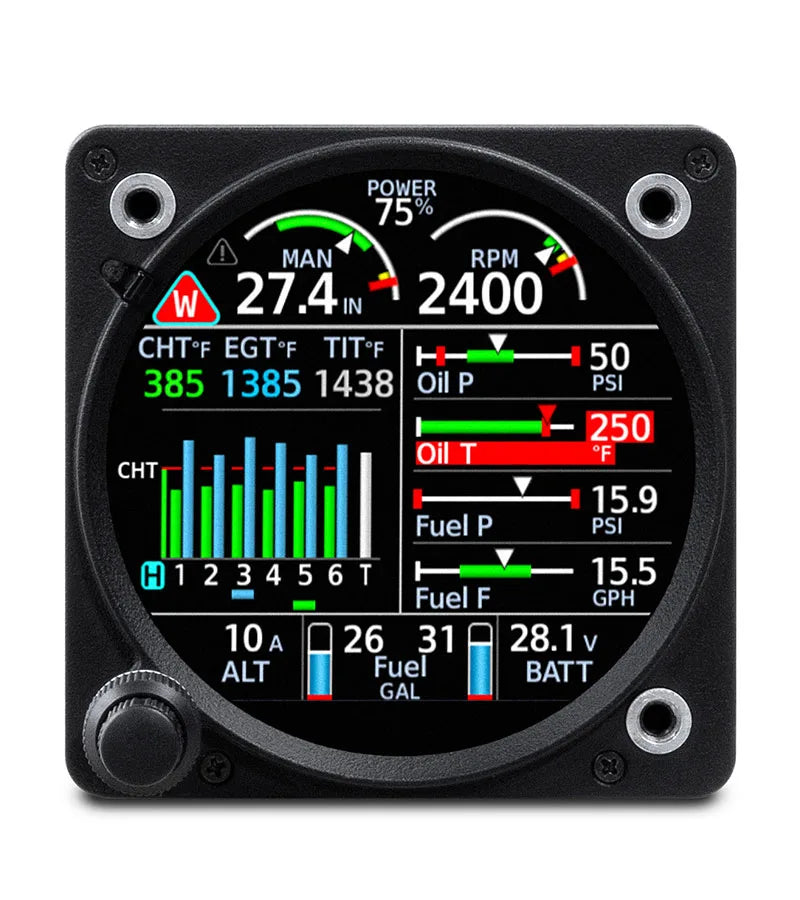

Pilot Advisories and Alerting

Configure your GI 275 EIS to show alerts you’ve set to prevent getting close to POH limits, including high CHT, battery voltage, oil temperature, high CHT cooling rate and more. Color-coded pilot alerts/advisories, set up to POH limits, help maintain engine performance and safety. Flashing cues quickly identify out-of-limit exceedances.

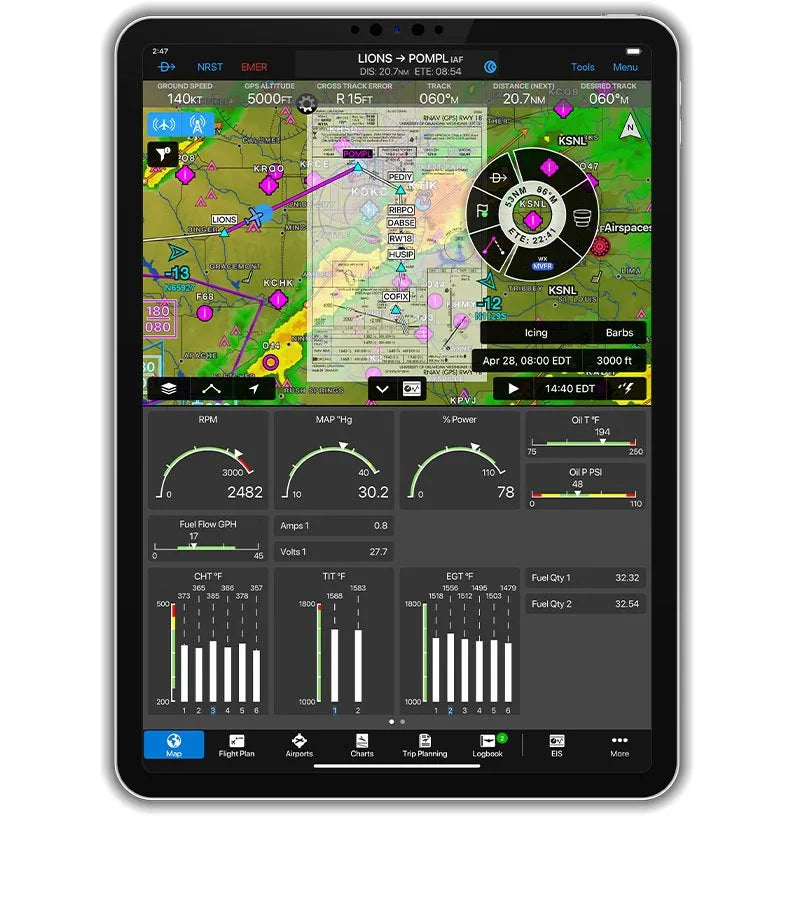

Stream and Analyze

Need a bigger screen? No Problem! With built-in Connext® wireless connectivity, GI 275 streams engine data to the Garmin Pilot app running on your compatible tablet or smartphone. Your recorded data on your flyGarmin.com account can be retrieved and sent to Air Plains for analysis to identify performance issues or maintenance needs in time to help avert more costly repairs later.
